    Rectangle SPI Interface Mono Lcd Display , Transflective Lcd Module 144x168 1.26inch

    Ask Lasest Price
    Brand Name : HRB
    Certification : ISO, SGS, ROHS
    Price : 1usd-2usd
    Payment Terms : T/T
    Supply Ability : 1kk
    Delivery Time : 21-28 days
    • Product Details
    • Company Profile

    Rectangle SPI Interface Mono Lcd Display , Transflective Lcd Module 144x168 1.26inch

    1.26inch square lcd panel 144x168 Rectangle tft lcd module SPI interface monochrome transflective screen

    Product Description
    Product size
    1.26-inch
    Type
    CG-Silicon, LCM
    Pixel Format
    144×168 175PPI
    Configuration
    Rectangle

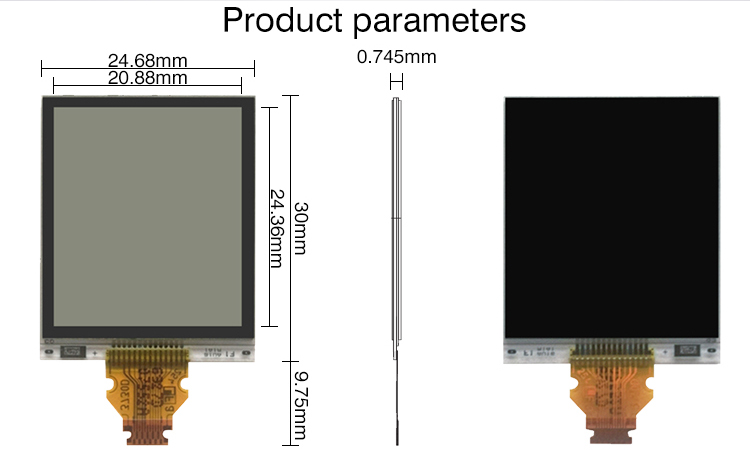

    Active Area
    20.88(H)×24.36(V) mm
    Outline Dim.
    24.68(H)×30(V) mm
    Bezel Area
    -
    Treatment
    Antiglare, Hard coating (3H)
    Luminance
    -
    Contrast Ratio
    20:1 (Typ.) (RF)
    View Direction
    -
    Response Time
    10/20 (Typ.)(Tr/Td)
    Viewing Angle
    60/60/60/60 (Typ.)(CR≥2)
    Operating Mode
    Transflective
    Support Color
    Monochrome
    Light Source
    No B/L
    Weight
    1.10g (Max.)
    Designed For
    Wearable Electronic Price Tag
    Frequency
    60Hz
    Touch Panel
    Without
    Interface Type
    3-wire SPI , 11 pins FPC
    Power Supply
    3.3/3.3V (Typ.)(VDDA/VDD)
    Environment
    Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
    Applications

    Our Advantage


    1) Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.


    2) Packing: Packed in anti-static bags with foam box to ensure safety in transportation.


    3) Payment Terms: T/T, Western Union.

    4) Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

    5) Service: Best after-sales service to ensure satisfaction from customers.

    6) Delivery: Goods will be delivered with 2-4 days by DHL, UPS, TNT, EMS, or By Air

    7) Warranty: Usually, product warranty for one year.

    8) Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
