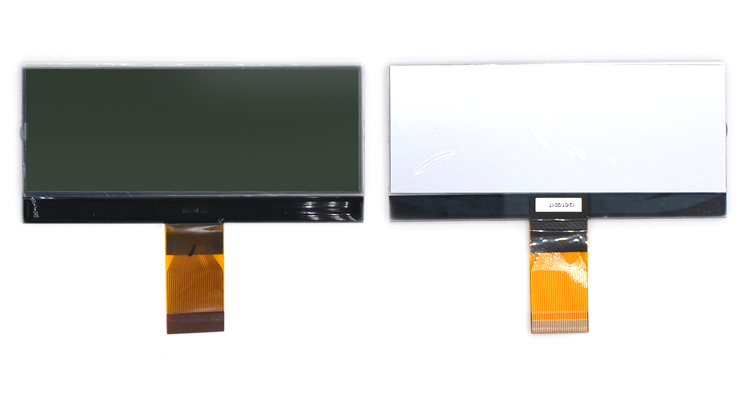

    COG 19264 192x64 Graphic LCD Panel With RW1097 Driver IC ROHS Approved

    Ask Lasest Price
    Brand Name : HRB
    Certification : ISO, SGS, ROHS
    Price : 1usd-2usd
    Payment Terms : T/T
    Supply Ability : 1kk
    Delivery Time : 21-28 days
    • Product Details
    • Company Profile

    COG 19264 192x64 Graphic LCD Panel With RW1097 Driver IC ROHS Approved

    Custom Graphic LCD Panel 19264 COG LCD Display Module Screen 192*64 Monochrome LCD


    Product Description
    LCD NameCustom Graphic LCD Panel 19264 COG LCD Display Module Screen 192*64 Monochrome LCD
    Display Format192 X 64 DotsDisplay ModeFSTN, Positive, Transflective
    LCD Color

    Display dot :Black,

    Background:White

    Driver ICRW1097
    Outline Dimension89.3(W) x41.3(H) x2.9(T) mmViewing Area85.00MIN(W) x31.00MIN(H) mm
    Viewing Direction6 O’clockInterface Input DataParallel or SPI Interface
    BacklightWithoutDriving Method1/65 Duty, 1/9 Bias
    Operating Temp.-20℃~+70℃Storage Temp.

    -30℃~+80℃


    Description

    1) Our standard tft lcd module size: 1.44", 1.77", 2", 2.2'', 2.4", 2.8", 3.2", 3.5", 4.3", 5", 7", 8", 10.1".


    2) Color TFT 2.4'' to 7.0'' LCD with ZIF FPC connector.


    3) Delevoped 4.0''(3.97'') IPS LCD module with wide viewing angle


    4) Delevoped 4.3'' IPS LCD panel, 480x272 resolution.


    5) 4.3" MCU interface TFT LCD module with SSD1963 controller.


    6) 3.5" transflective sunlight readable TFT.


    7) Standard 3.2'', 3.5", 4.3'', 5", 7" LCD with CTP.


    8) 2.4'', 2.8'', 3.2'', 4.3'', 5.0'', 7.0'' LCD display with touchscreen coverlens.


    9) High brightness TFTs with Anti-reflective film with good performance under sunlight.


    10) All common TFTs with Oflim can be with wide viewing angle, close to IPS panel & same as MVA glass


    Application



    Our Services


    1. Replacement within 30 days after the shipment of products from us due to products' problems.
    2. We can print your logo and stick your model No.on the cameras.
    3. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
    4. Professional technician supports. We have a good after-sales service team to solve your problems in time.
    5. All goods will be inspected and tested before shipment.
    6. Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Trademanager or Email. It will be responded within 24 hours.

    Custom Graphic LCD Panel 19264 COG LCD Display Module Screen 192*64 Monochrome LCD
