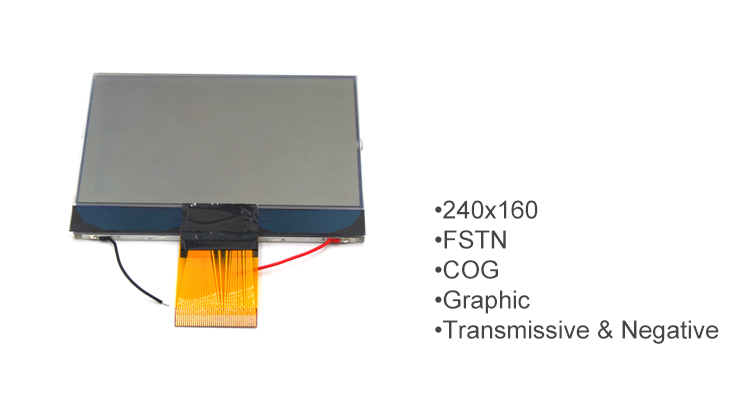

LCD Name	FSTN Monochrome Type LCD COG Screen 240*160 Graphic LCD Display Module
Display Format	240 X 160 Dots	Display Mode	FSTN, Positive, Transflective
LCD Color	Display dot : Black, Background: White	Operating Voltage	3.3V
Outline Dimension	77.4(W) x61.0(H) x4.6(T) mm	Viewing Area	73.42MIN(W) x48.00MIN(H)mm
Viewing Direction	6 O’clock	Interface Input Data	Parallel
Backlight	White	Driving Method	1/160 Duty, 1/12 Bias
Working Temp.	-10℃~+60℃	Storage Temp.	-20℃~+70℃

Description

1) Our standard tft lcd module size: 1.44", 1.77", 2", 2.2'', 2.4", 2.8", 3.2", 3.5", 4.3", 5", 7", 8", 10.1".

2) Color TFT 2.4'' to 7.0'' LCD with ZIF FPC connector.

3) Delevoped 4.0''(3.97'') IPS LCD module with wide viewing angle

4) Delevoped 4.3'' IPS LCD panel, 480x272 resolution.

5) 4.3" MCU interface TFT LCD module with SSD1963 controller.

6) 3.5" transflective sunlight readable TFT.

7) Standard 3.2'', 3.5", 4.3'', 5", 7" LCD with CTP.

8) 2.4'', 2.8'', 3.2'', 4.3'', 5.0'', 7.0'' LCD display with touchscreen coverlens.

9) High brightness TFTs with Anti-reflective film with good performance under sunlight.

10) All common TFTs with Oflim can be with wide viewing angle, close to IPS panel & same as MVA glass

Application

Our Services

1. Replacement within 30 days after the shipment of products from us due to products' problems.
2. We can print your logo and stick your model No.on the cameras.
3. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
4. Professional technician supports. We have a good after-sales service team to solve your problems in time.
5. All goods will be inspected and tested before shipment.
6. Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Trademanager or Email. It will be responded within 24 hours.
